Diamond 1500 "Combo" pack

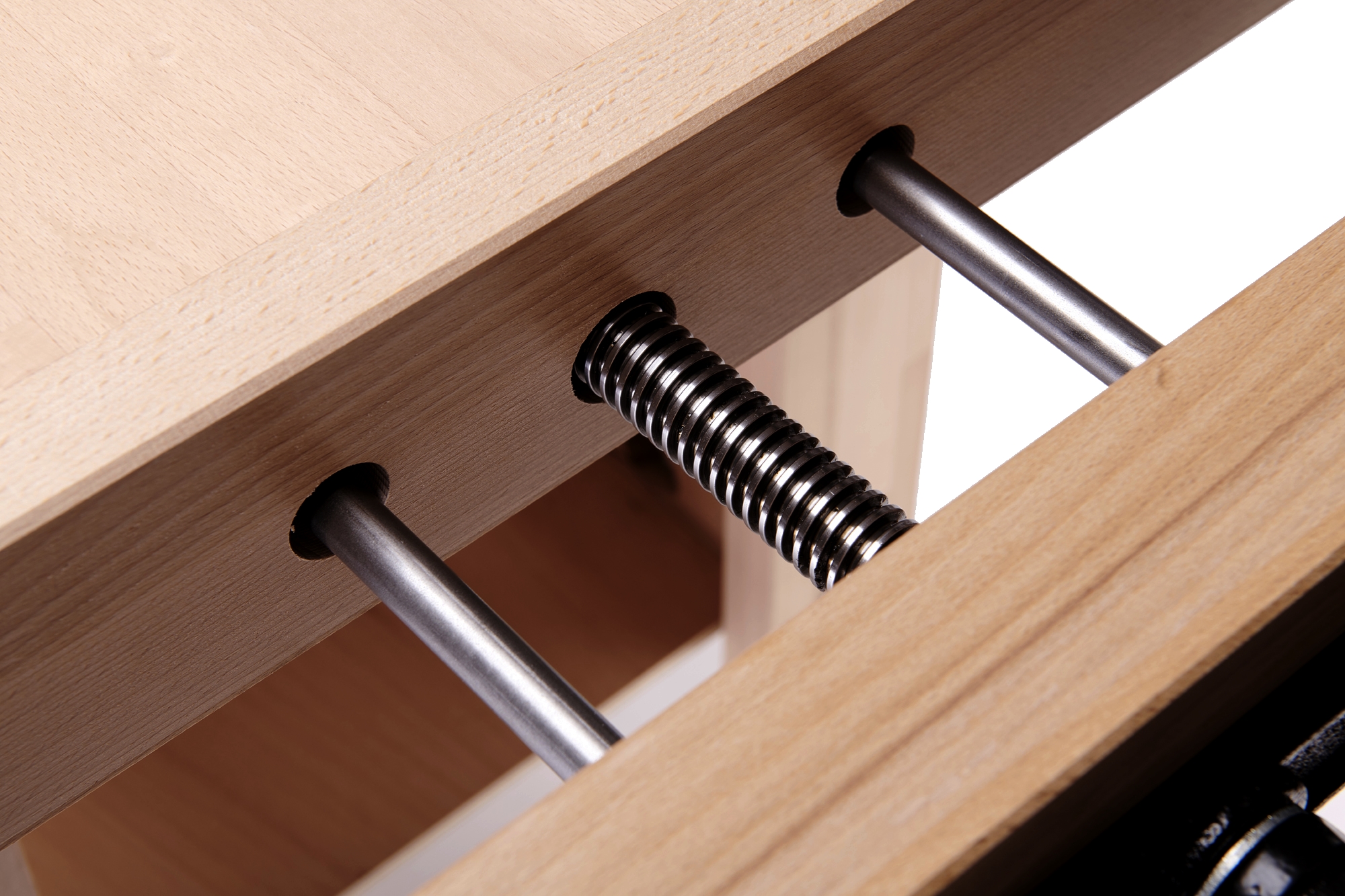

This bench is a combination of the Hobby and PRO series and is produced in 2 sizes. The plate made of solid beech wood is designed for high load. The base from block laminated beech wood guarantees maximum stability and rigidity. Thanks to 2 dimensions, this bench is also suitable for large workshops and workshops with restricted room as well. This model has an open tool-storage shelf which can also be used for the material. Likewise, the trough along the back side can be employed for laying aside tools or material, and it is suitable for quick worktop cleaning as well. Thanks to pre-boring of the vices, the bench is suitable for both left- and right-handed persons. Bench dogs holes are bored in the base; in combination with the vice, they enable vertical clamping of the material. The plate includes 2 rows of bench dog holes which offer clamping of materials of various sizes. The bench is supplied in a dismantled state, with detailed assembly instructions.

Quick Spec




mm

inch

Total length

1500
59 ¹/₁₆

Worktop lenght

1350
53 ⁵/₃₂

Total width

760
29 ⁵⁹/₆₄

Worktop width

610
24 ¹/₆₄

Working height

850
33 ¹⁵/₃₂

Worktop thickness

30
1 ³/₁₆

Apron depth

90
3 ³⁵/₆₄

Front vise (size/cap.)

360×55/130
14 ¹¹/₆₄ x 2 ¹¹/₆₄ / 5 ¹/₈

Side vise (size/cap.)

360×55/130
360×55/130

Weight

50
110

Shipping dimensions

1400x630x100
55 ¹/₈ x 24 ⁵¹/₆₄ / 3 ¹⁵/₁₆

EAN

8594072290107

SKU

HB-D1500-COMBO
1x shelf, 4pcs of round bench dogs (3/4″), 2x front/side spindle small, 2x vice handle

Precision In Every Detail​
